NV-20V Series Vacuum Module
Information：
| Item | Description |
|---|---|
| Body dimensions[WxDxH] | 20x70x82 |
| Operating temperature range[°C] | 10~50°C |
| Net weight[g] | 160g |
| Power supply | 24V DC 3.5/0.3W* |
| * | start up 3. 5W ( 15msec) | |
| Keep 0. 3W PWM |
- Integrated micro vacuum and blow-off valves.
- Using multi-stage ejectors. High efficiency. 30 – 50% lower energy consumption.
- Flexible and compact module-based design of 20mm. Minimal and easy maintenance.
Technical Information：
| Item | High Vacuum Type | ||
|---|---|---|---|
| Operating pressure | 0.45 | 0.50 | 0.60 |
| Max. vacuum pressure[-kPa] | 89.0 | 92.0 | 91.0 |
| Max. vacuum flow[L/min] | 13.8 | 14.4 | 14.4 |
| Air consumption[L/min] | 7.2 | 7.8 | 9.0 |

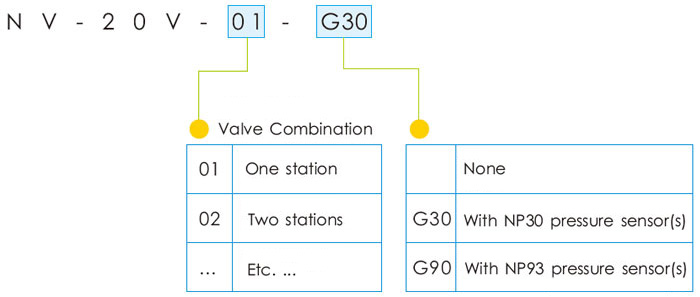

Model No.：
Dimensions：
| Manifold stations(N) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| L1 | 39.0 | 59.0 | 79.0 | 99.0 | 119.0 | 139.0 | 159.0 | 179.0 | 199.0 | 219.0 |
| L2 | 28.5 | 48.5 | 68.5 | 88.5 | 108.5 | 128.5 | 148.5 | 168.5 | 188.5 | 208.5 |
Construction：
