Vacuum

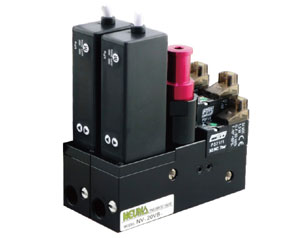

NV-20VB Series Vacuum Module
Information：
| Series | NV-20VB | NV-20VBH | NV-20VBHM | |
|---|---|---|---|---|
| Body dimensions[WxDxH] | 20x83.4x89 | 22x103x81 | ||
| Operating temperature range[°C] | 10~50°C | |||
| Net weight[g] | 226g | 217g | 238g | |
| Power supply | Vacuum Build | 24V DC 3.5/0.3W* | 24V DC 4W | |
| Vacuum Break | 24V DC 3.5/0.3W* |
24V DC 4W | ||
| * | Start Up 3. 5W ( 15msec) | |
| Keep 0. 3W PWM |
- Integrated micro vacuum and blow-off valves.
- Using multi-stage ejectors. High efficiency. 30 – 50% lower energy consumption.
- Flexible and compact module-based design of 20mm. Minimal and easy maintenance.
Technical Information：
| Item | High Vacuum Type | ||
|---|---|---|---|
| Operating pressure[MPa] | 0.35 | 0.40 | 0.50 |
| Max. vacuum pressure[-kPa] | 84.0 | 88.0 | 88.0 |
| Max. vacuum flow[L/min] | 39.6 | 40.2 | 40.2 |
| Air consumption[L/min] | 28.4 | 31.8 | 34. 2 |

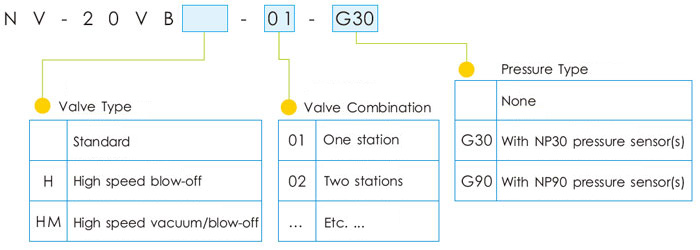

Model No.：
Dimensions：

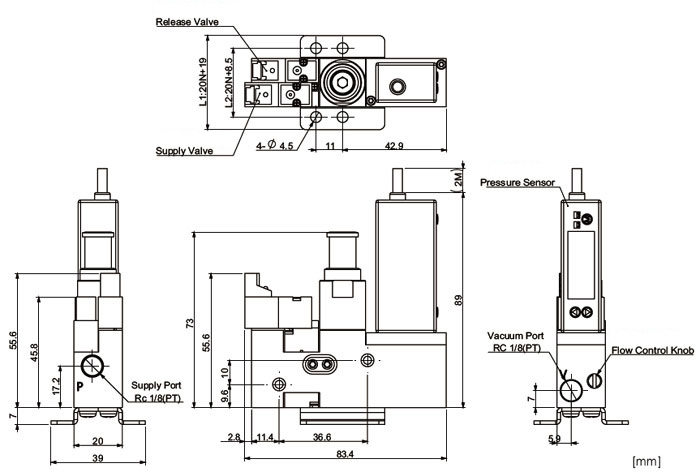

● NV-20VB
| Manifold stations(N) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| L1 | 39.0 | 59.0 | 79.0 | 99.0 | 119.0 | 139.0 | 159.0 | 179.0 | 199.0 | 219.0 |
| L2 | 28.5 | 48.5 | 68.5 | 88.5 | 108.5 | 128.5 | 148.5 | 168.5 | 188.5 | 208.5 |

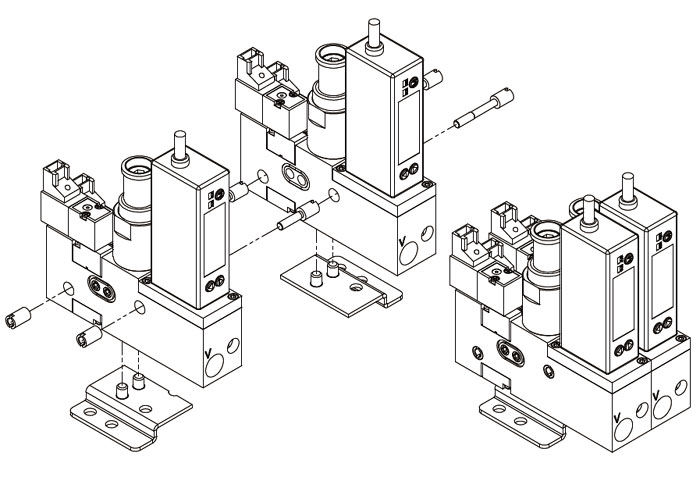

Construction：
Dimensions：

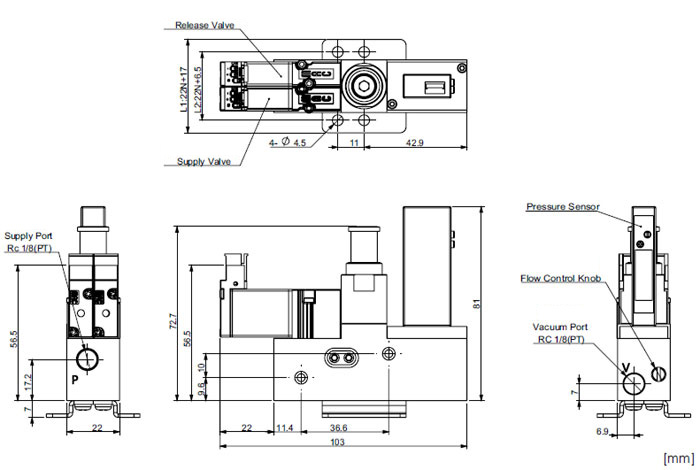

● NV-20VBH
| Manifold stations(N) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| L1 | 39.0 | 61.0 | 83.0 | 105.0 | 127.0 | 149.0 | 171.0 | 193.0 | 215.0 | 237.0 |
| L2 | 28.5 | 50.5 | 72.5 | 94.5 | 116.5 | 138.5 | 160.5 | 182.5 | 204.5 | 226.5 |

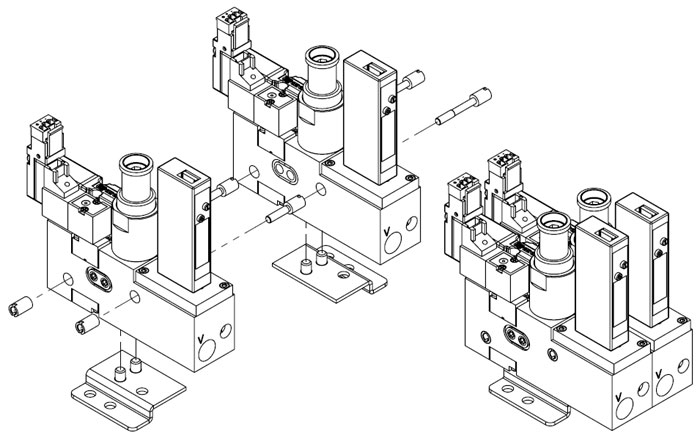

Construction：
Dimensions：

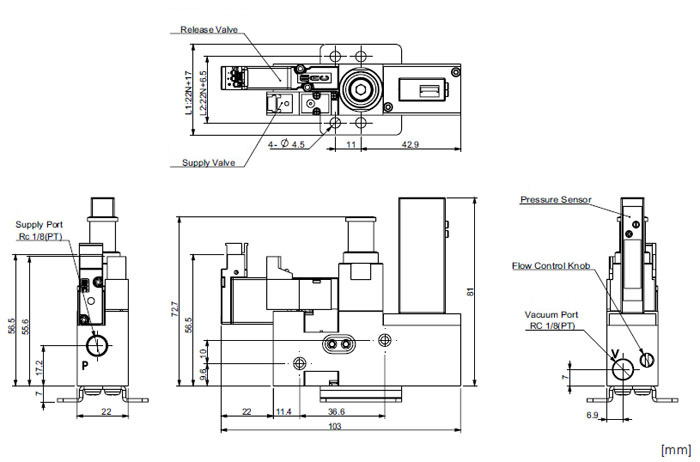

● NV-20VBHM
| Manifold stations(N) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| L1 | 39.0 | 61.0 | 83.0 | 105.0 | 127.0 | 149.0 | 171.0 | 193.0 | 215.0 | 237.0 |
| L2 | 28.5 | 50.5 | 72.5 | 94.5 | 116.5 | 138.5 | 160.5 | 182.5 | 204.5 | 226.5 |

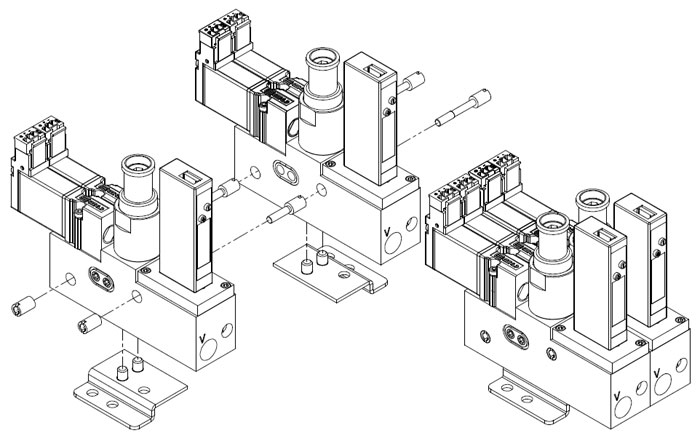

Construction：
