Valve Specifications：
| Series | N V P - 3 3 2 1 M | P V 1 0 |
|---|---|---|
| F l u i d | A i r | |
| O p e r a t i n g p r e s s u r e | 0 ~ - 1 0 0 k P a | 0 ~ 0 . 7 M P a |
| M a x . f l o w ( L / m i n ) | 36 | 14 |
| Re s p o n s e t i m e ( m s ) | 4 | 2 |
| Vo l t a g e ( V D C ) | 24V DC 3.5/0.3W* | |
| Vo l t a g e t o l e r a n c e | ±1 0 % | |
| A m b i e n t t e m p e r a t u r e | 0 ~ 5 0℃ | |
Model No.：

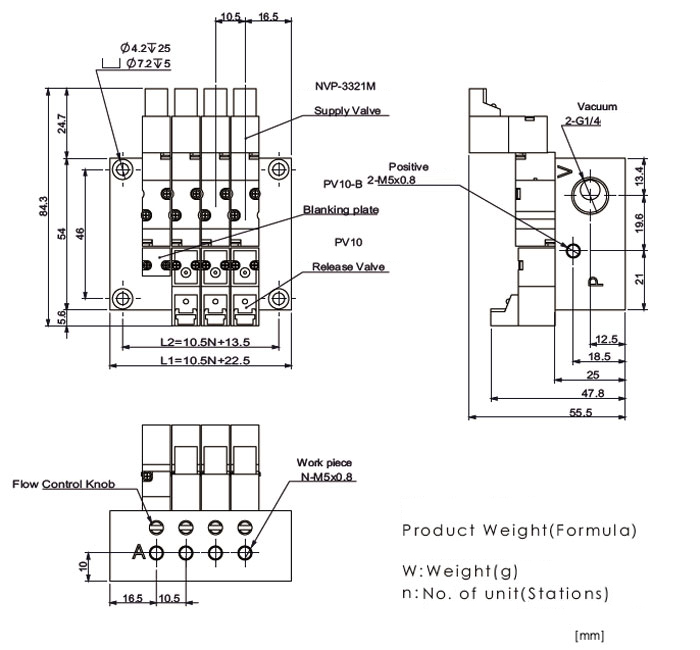

Dimensions：
| Manifold stations(N) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| L1 | 43.5 | 54.0 | 64.5 | 75.0 | 85.5 | 96.0 | 106.5 | 117.0 | 127.5 |
| L2 | 34.5 | 45.0 | 55.5 | 66.0 | 76.5 | 87.0 | 97.5 | 108.0 | 118.5 |
R e p l a c e m e n t P a r t s：
