NVPN-10V Series Vacuum Module
Information：
| Item | Description | |
|---|---|---|
| Body dimensions[WxDxH] | 30x94x78 | |
| Operating temperature range[°C] | 10~50°C | |
| Net weight[g] | 370g | |
| Power supply | Vacuum Build | 24V DC 3.5/0.3W* |
| Vacuum Break | 24V DC 2W | |
|
- Integrated micro vacuum and blow-off valves.
- Using multi-stage ejectors. High efficiency. 30 – 50% lower energy consumption.
Technical Information：
| Item | High Vacuum Type | |
|---|---|---|
| Operating pressure[MPa] | 0.38 | 0.60 |
| Max. vacuum pressure[-kPa] | 81.0 | 84.0 |
| Max. vacuum flow[L/min] | 120.0 | 144.0 |
| Air consumption[L/min] | 92.0 | 133.0 |

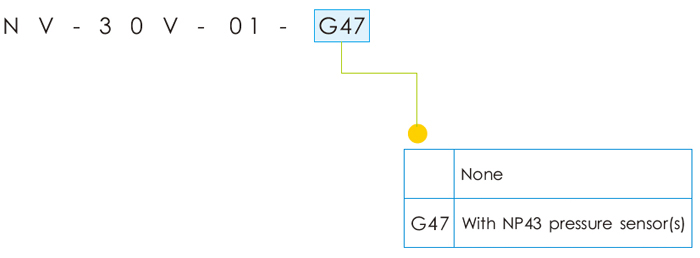

Model No.：
Dimensions：
Construction：
